For thin-film solar modules and tandem cells

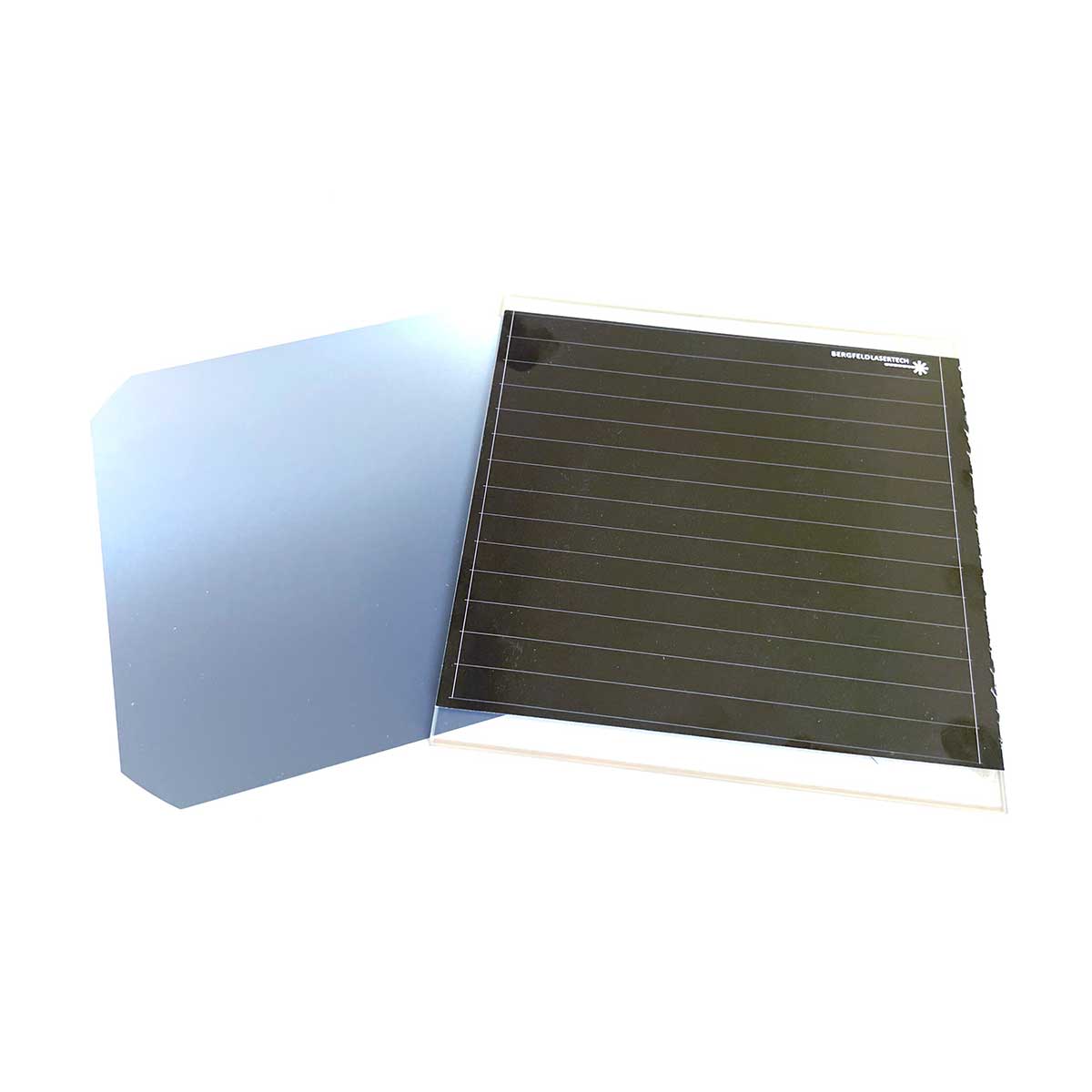

For thin-film photovoltaic modulen and for wafer based silicon solar cells
Module for large substrates up to 1.2 m times 2 m Laser
processing from top (film side) or bottom (glass side) with 1064, 532, and 355 nm. The wavelength can be changed by computer. It is possible to process with more than one laser beam at the same time. We also offer a patterning or edge tracking system. The speed of the stages is up to 1 m per second. The system is available with our long-pico, pico and femto second laser sources.
Stand alone laser scriber für ambient air for > 140 mm x 140 mm working ares with vision system for P1, P2, P3, LED and contact exposure
Available as mobile laser system for air
Stand-alone laser scriber for ambient air with a working area of 140 mm x 140 mm (standard) or up to 400 mm x 400mm (optional with reduced precision).
We offer the system with a vision system for P1, P2, P3 patterning.
Laser edge deletion (LED) and laser contact exposure (LCC) can be performed with the laser for patterning. We also offer additional IR and green lasers for faster LED and LCC processing, for example, 100 mm x 100 mm samples in 7 seconds. A low-cost version for fast processing and without a vision system with 2 laser sources in one system is available from below 50 k€.
You can also apply our robot handling of samples for automated prototype production or small series.
And available as laser system for glove box

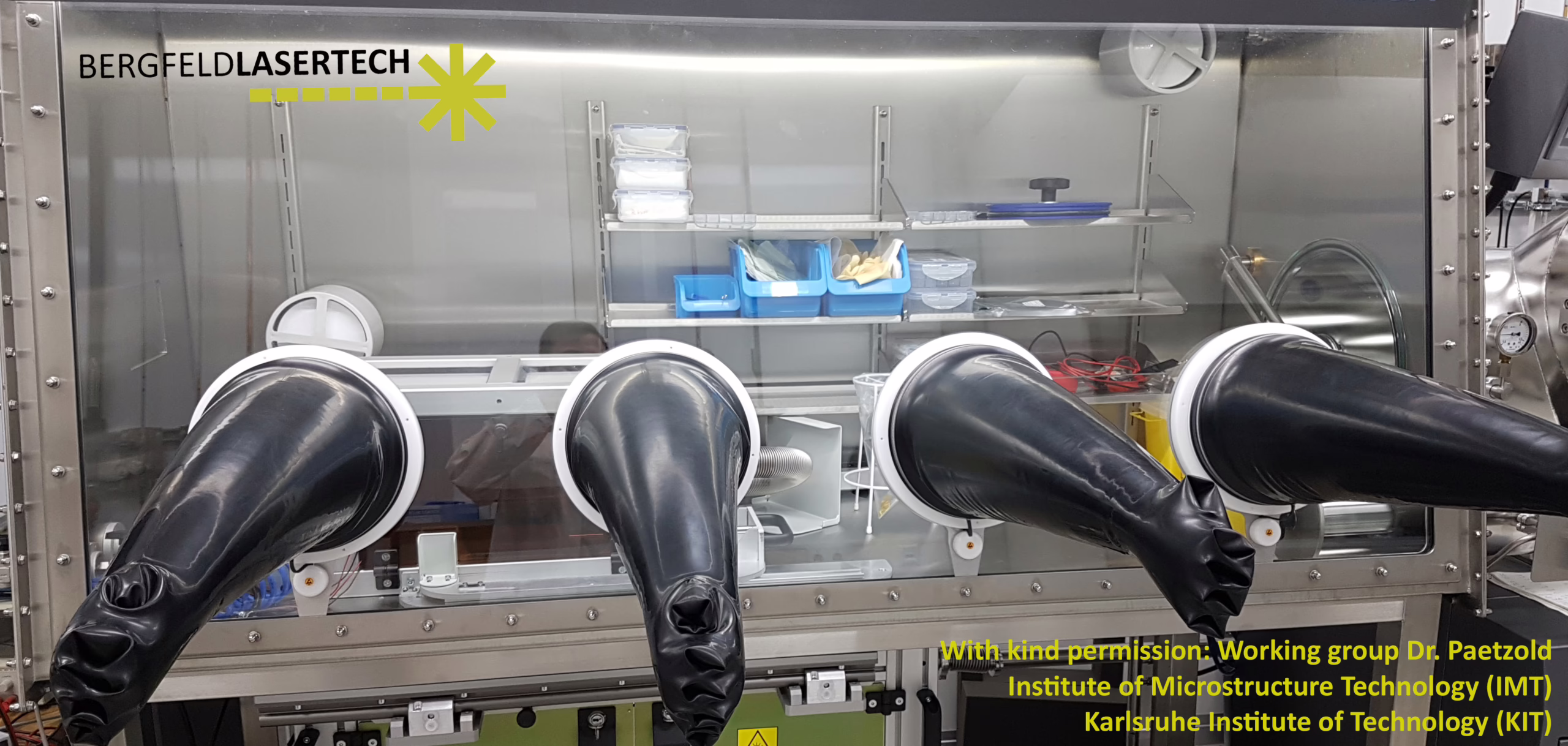

Laser system for glove box.
Our femto, pico and nanosecond laser portfolio
Every circle indicates an available laser with a fixed pulse duration.
Every line indicates a laser with a variable pulse duration with a range of pulse duration.
The pulse durations are selectable via computer and can be part of a receipt.
3 different wavelengths in one laser source
Enclosures, modules, and handling systems for processing in air, glove box, ultra-high vacuum (UHV) and electro-chemical environment
Stand-alone laser system for processing in air
Stand alone laser scriber für ambient air for > 140 mm x 140 mm working ares with vision system for P1, P2, P3, LED and contact exposure
UHV chamber for laser processing in ultra-high vacuum
Laser system for glove box for processing in inert atmosphere like argon or nitrogen (laser source outside)
Laser system for processing on substrates up to 1.2 m x 2 m
This module is available with 3 wavelength laser sources.
It can process with the laser from the film side and from the glass side.
As an option, we offer a fast scribe or edge or fiducial tracing system.
Laser system for glove box for processing in inert atmosphere like argon or nitrogen (laser source inside)
Stand-alone laser system for processing in air (with high-power pico and femtosecond laser sources)
Laser source on top of a glove box for non-transparent samples
The glove box was made by the customer
Robots for automated sample handling
The program of the robot can be adapted by the user.
Automated samples change is requested mostly by customers who need many samples for automated analysis and evaluation of the results by artificial intelligence (AI).
The image shows automated change of crystalline silicon wafer for solar cells (cSi solar cells) and perovskite on silicon tandem cells.
